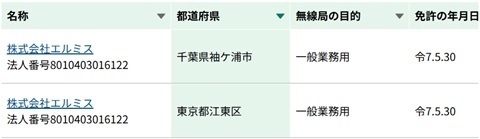

Ermis had been granted fixed-station microwave licences.
https://www.tele.soumu.go.jp/musen/SearchServlet?pageID=4&IT=A&DFCD=0004609338&DD=1&styleNumber=21
https://www.tele.soumu.go.jp/musen/SearchServlet?pageID=4&IT=A&DFCD=0004609339&DD=1&styleNumber=21
Naturally, this suggests that something is in Sodegaura.
Let's go and see: Saturday, July 5.
Strategy
A blind search, for the first time in a while.
The only clue is ‘within Sodegaura City’.

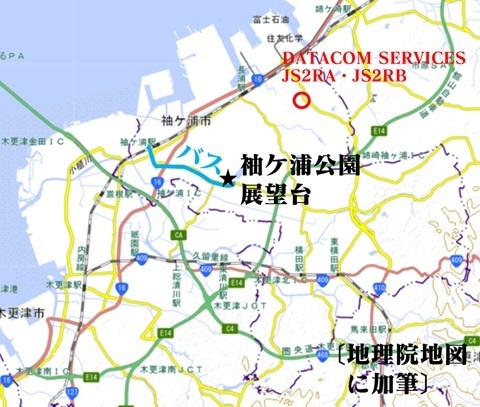

I decided to begin at the observation platform in Sodegaura Park and search from there.
To the site
Tamachi 6:48 → Shimbashi 7:12 → Sodegaura 8:32 / 9:07 → Sodegaura Park entrance 9:19.

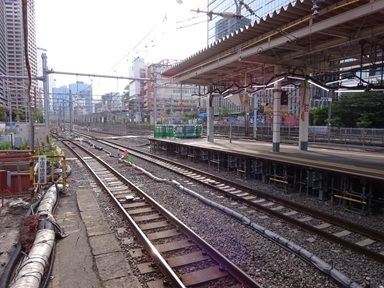

Haneda new-line construction. No dramatic progress.
My usual high-zoom compact camera, the WX350, broke here.
Departing Tamachi.
Changing at Shimbashi.
Bus from Sodegaura.
Sodegaura Park
Arrived on time.

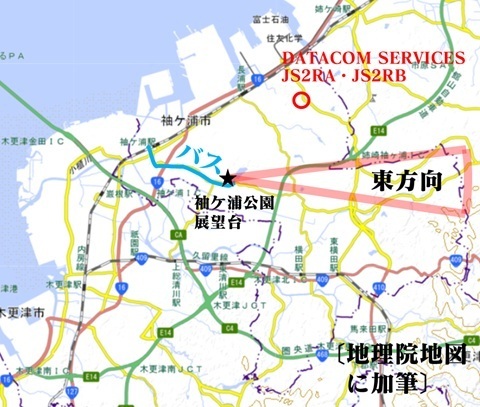

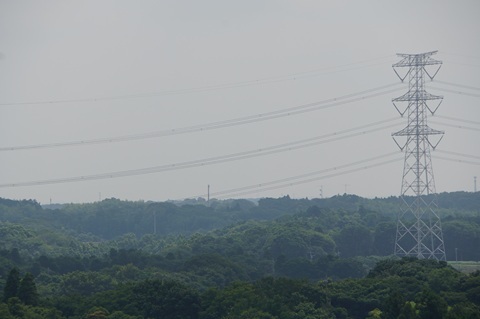

Searching for suspicious towers with a monocular from the observation platform.
?!
?!

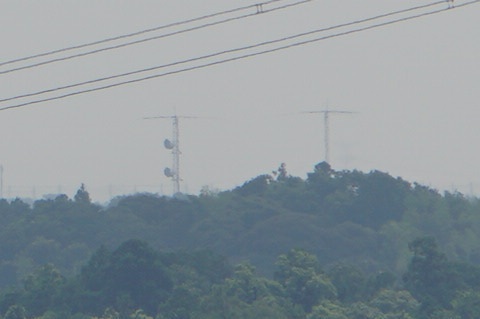

…An unfamiliar site. This must be it.
Due east from the observation platform.
Now I just have to make my way there.
It is unclear which ridge it is on.
But at this point I thought I would easily get there without losing sight of it.
Departed at 9:46.
Approaching
Lost it. :-)
I happened upon the Higashi-Iwai bus stop, and a bus was due at just the right time, so I decided to go to German Village and regroup.
…But even searching from the Ferris wheel, I could not find it.
I decided to check the plateau one last time and then retreat by bus from Nozomino.
I climbed past the ‘Ittan-momen’ [a visual nickname], on the left, photographed during the preliminary March 2 search, and headed to the ‘Idemitsu village’ at Kamiizumi.
After passing north through the ‘Idemitsu village’, just as I was about to turn left, westward…
!!

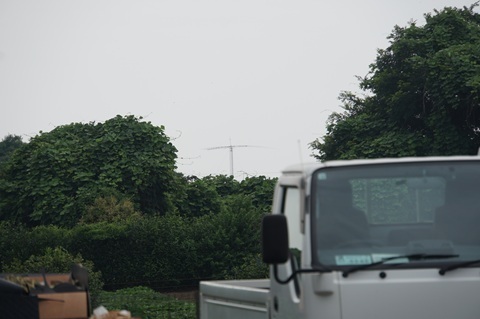

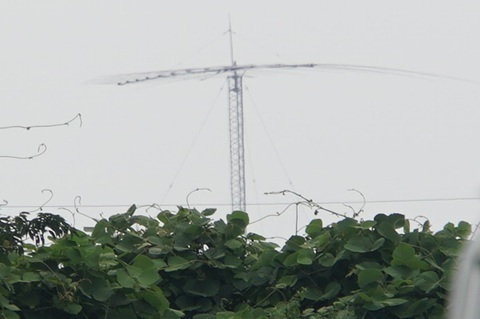

Reacquired!

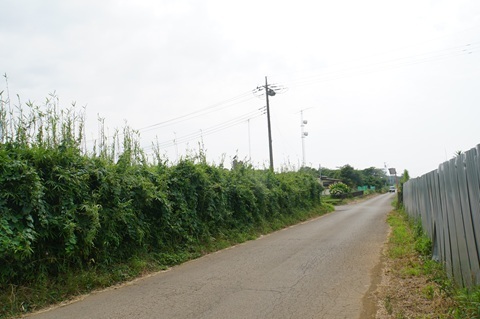

I'm not losing it this time. It is west of here. I will approach.

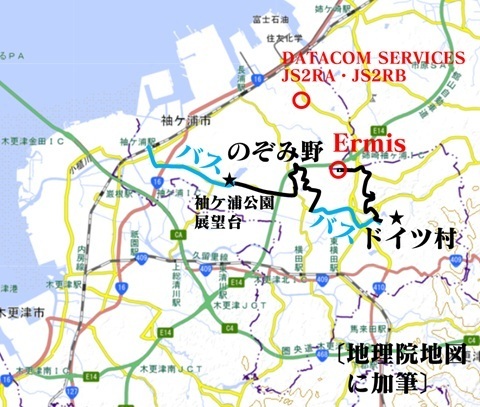

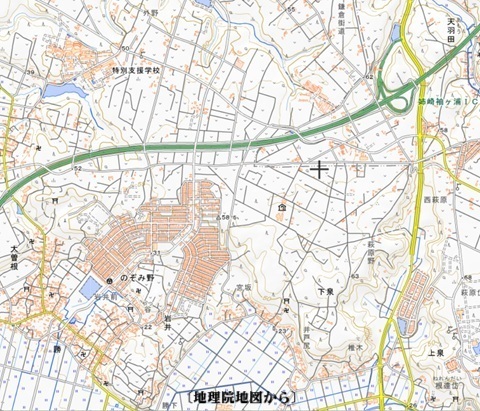

In the end, it was here ↓. Reached it at 14:25.
I had passed this way during the March 2 preliminary search too… but there had been nothing there then.
Leaving Nozomino to the south was the mistake.
Approaching from the north was the right answer.
https://www.google.com/maps/@35.42350004,140.03725558,58m/data=!3m1!1e3
In Google Earth imagery dated February 20, 2025, site grading is complete:
Enjoy the view
Ermis's transmit site—confirmed by the construction-site notice.
The photographs in this section can be clicked to enlarge.

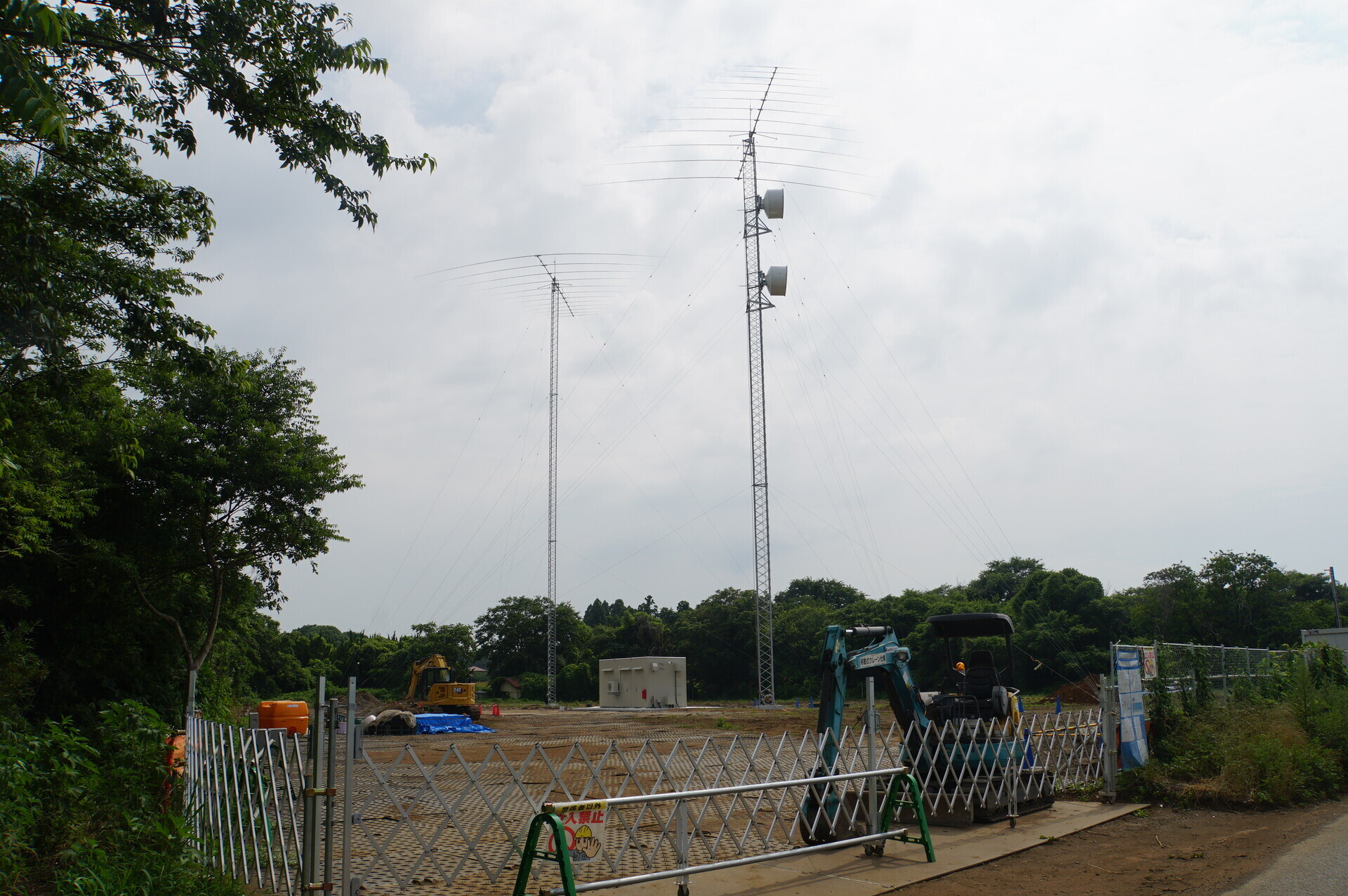

From the northeast.

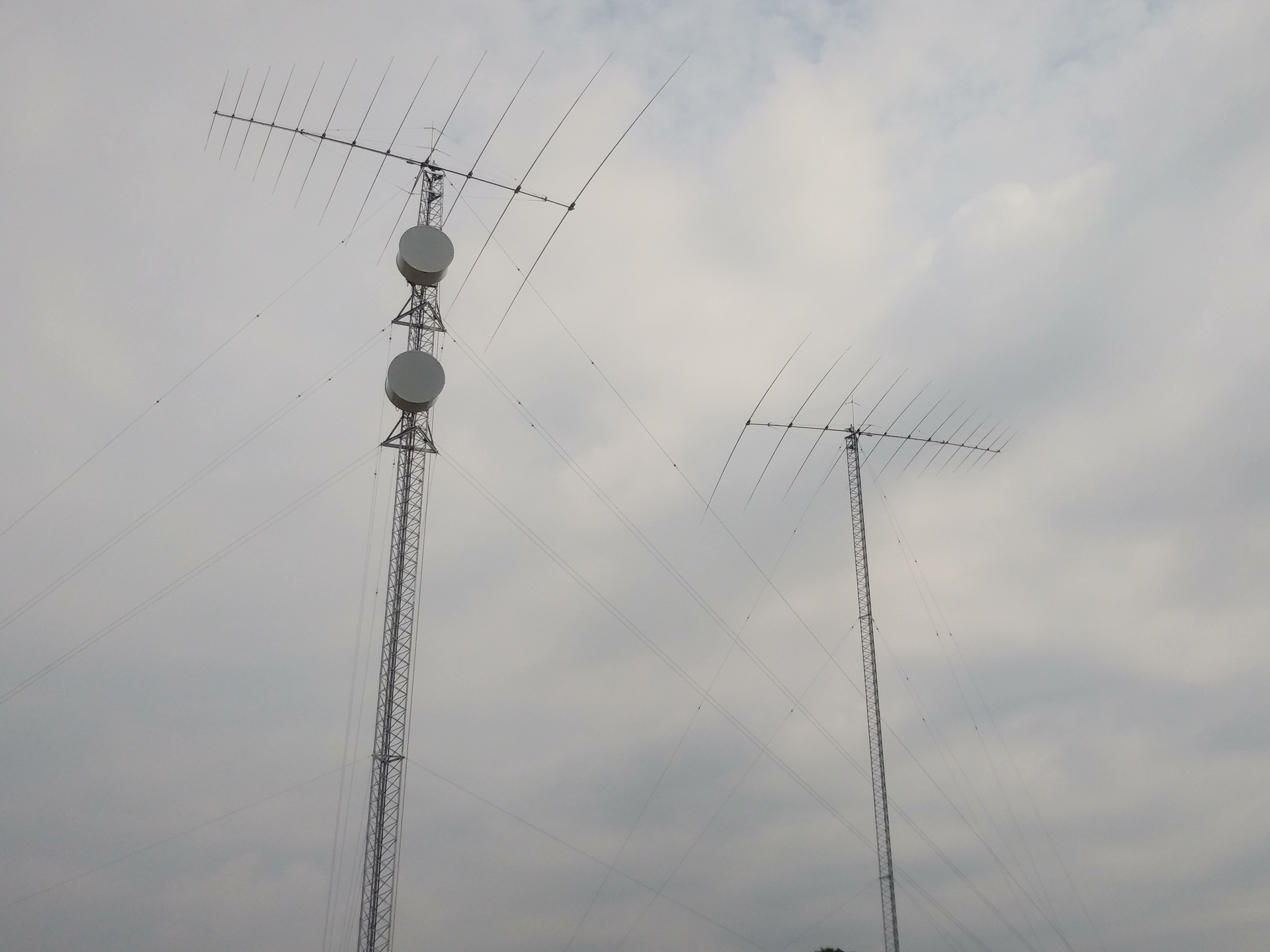

This one was taken with a smartphone.
From the northwest.

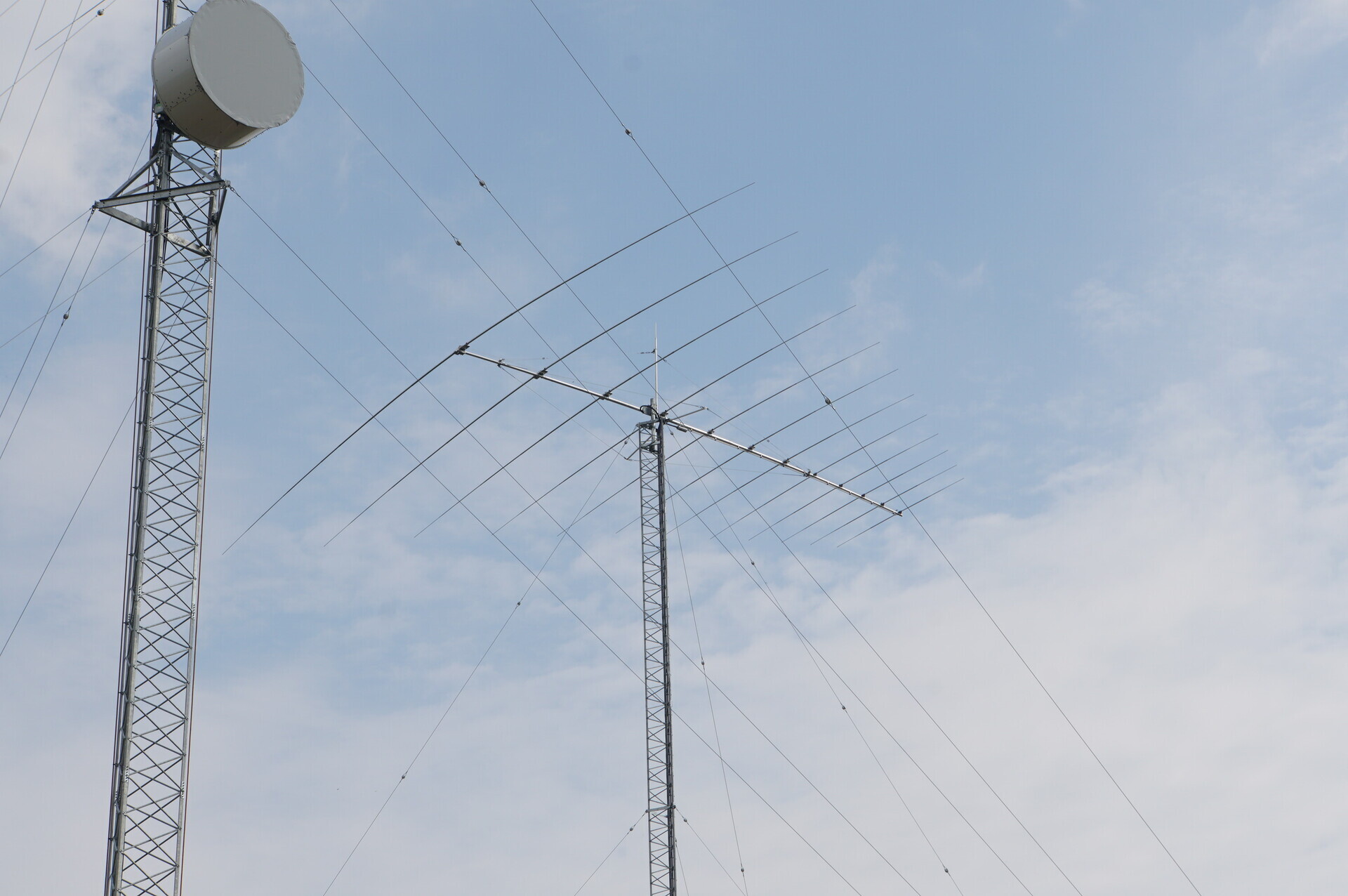

Twelve elements. Toward W [USA].

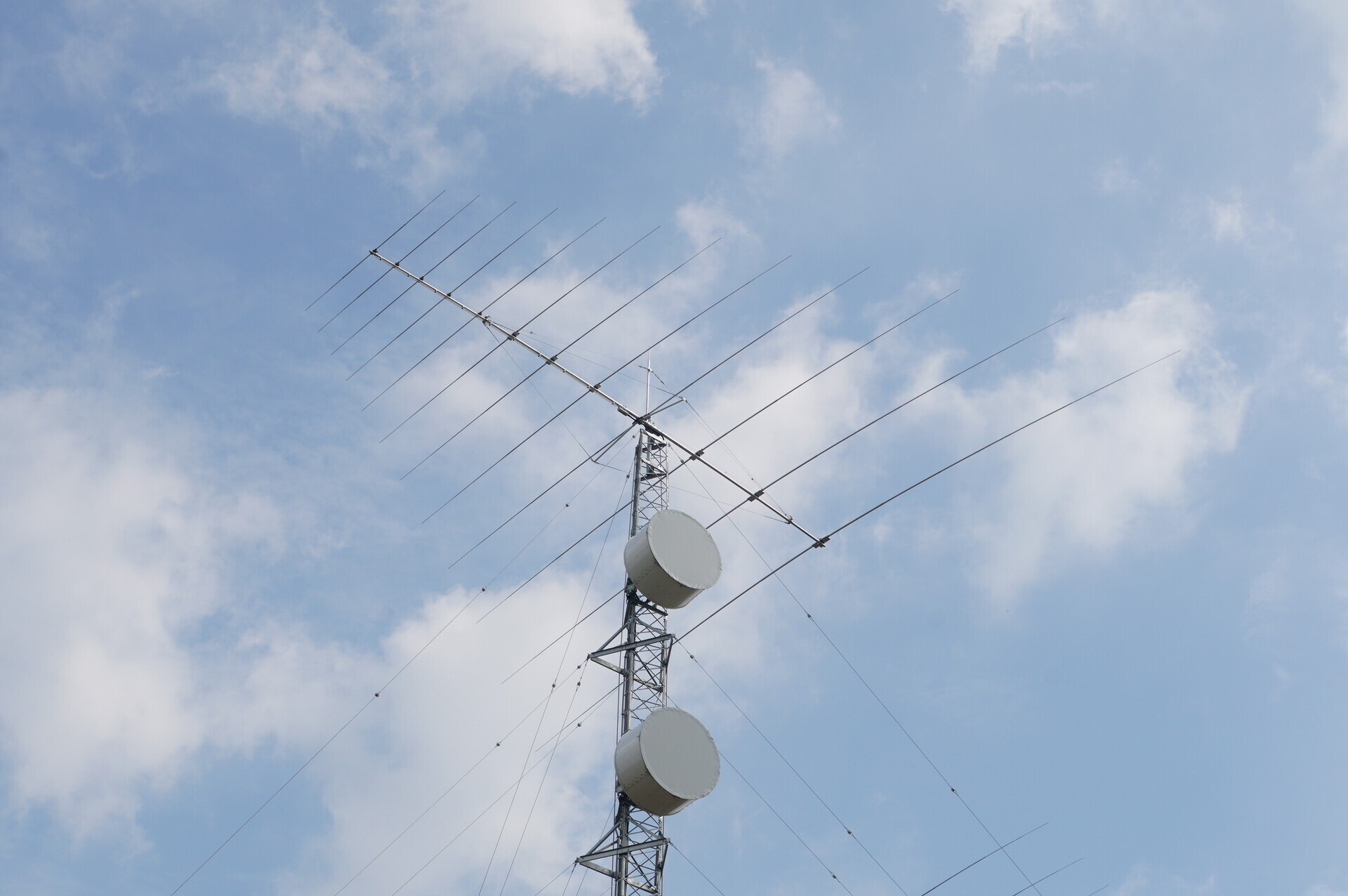

This one also has twelve elements. Toward 9V [Singapore] perhaps?

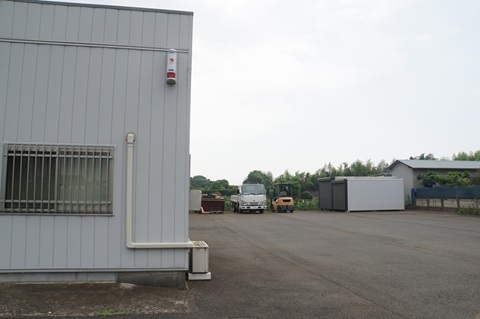

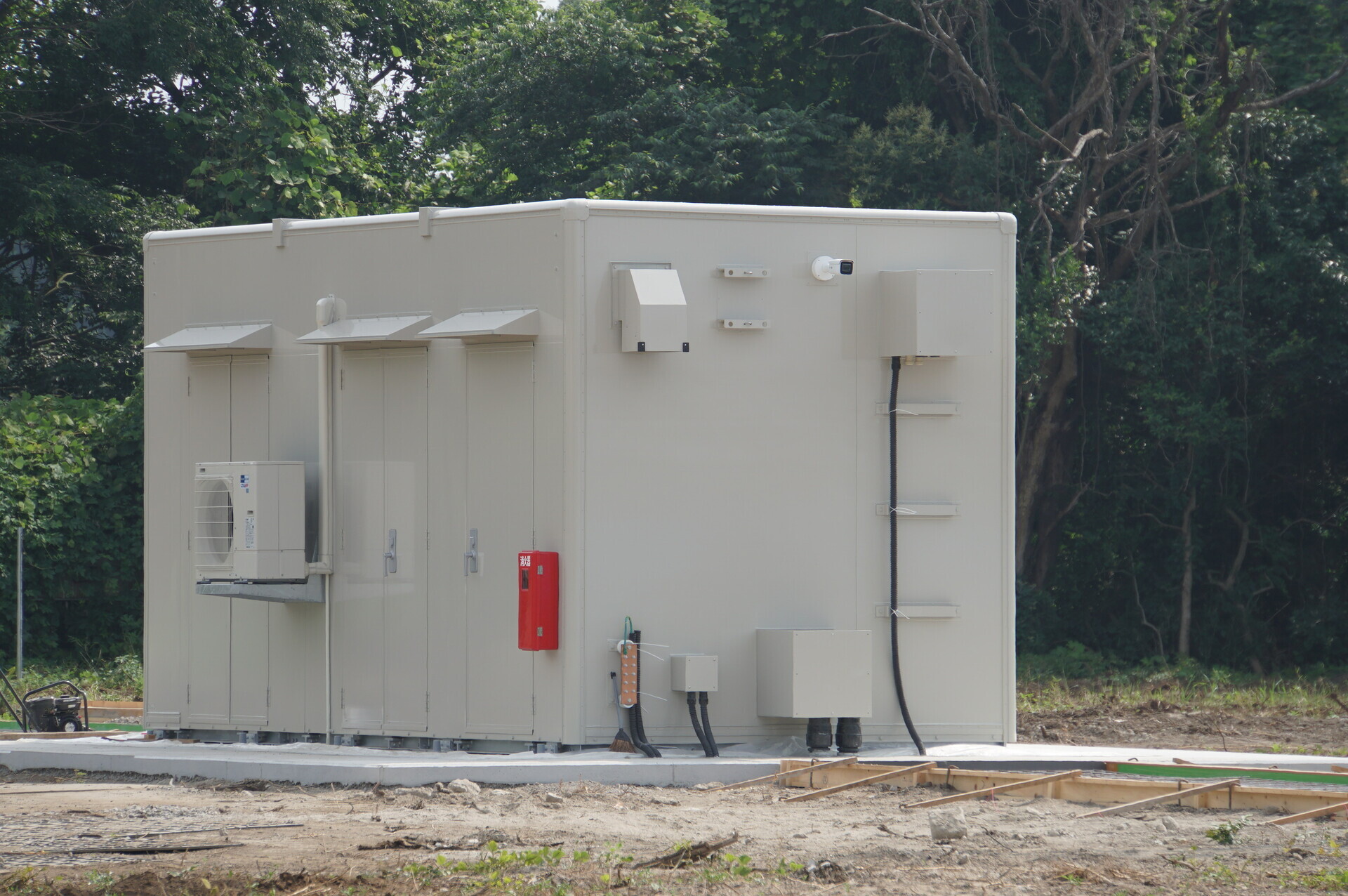

Station building.

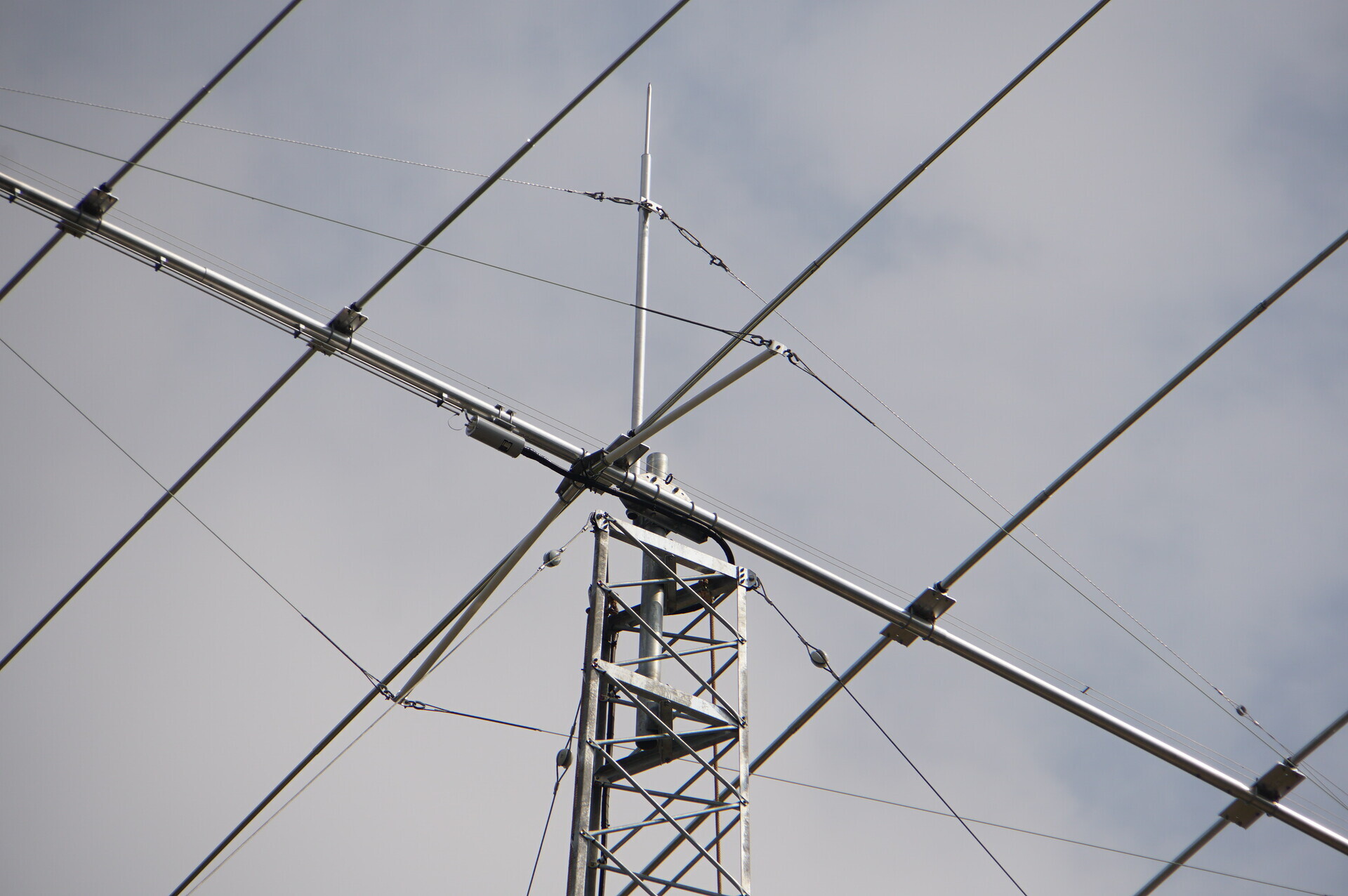

For enthusiasts of mounting arrangements.

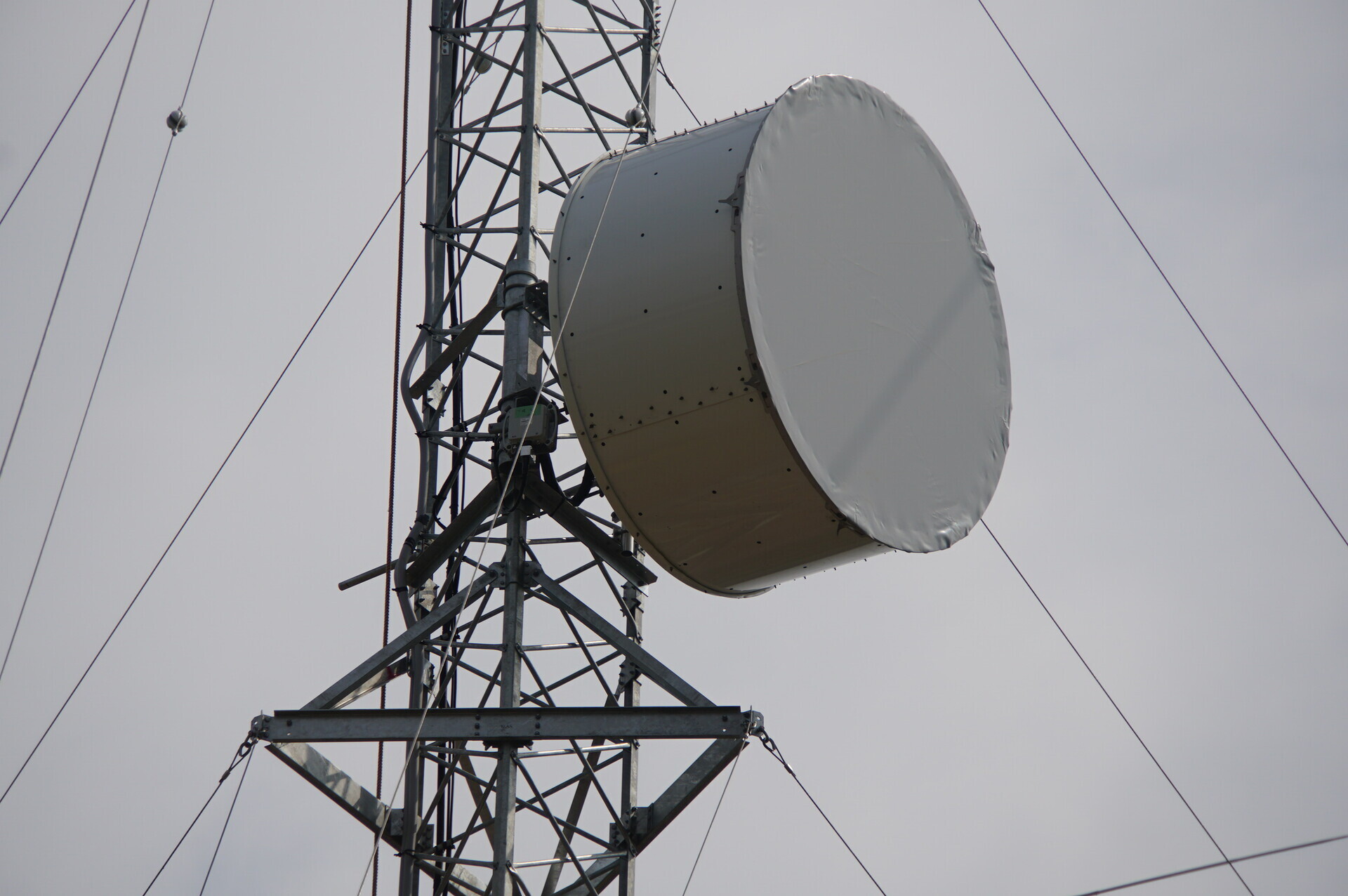

Microwave: the shape of the antennas will be a clue when identifying their counterparts later.
Actually a space-diversity arrangement.
The power installation is in the picture too.
Triumphant return

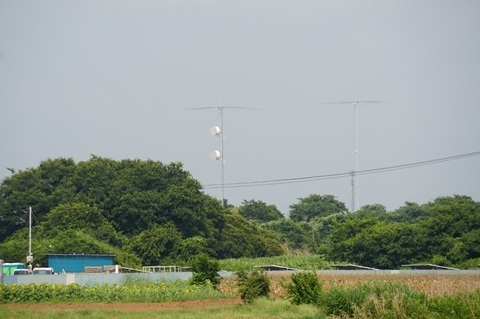

It is clearly visible from the northern end of Nozomino's main street.
You could have told me…
Nozomino Terminal 15:48 → Nagaura 16:00 / 16:16 → Chiba 16:42 / 16:58 → Shimbashi 17:40 / 17:45 → Tamachi. Home at 18:30.
Nozomino Terminal.
Nagaura.
Changing at Chiba. The photograph shows the train arriving; it will reverse here.
Changing at Shimbashi.
Expenses
¥1,342: JR, Tamachi → Sodegaura.
¥305: bus, Sodegaura Station → Sodegaura Park entrance.
¥199: bus, Higashi-Iwai → German Village.
¥1,000: German Village admission.
¥400: its Ferris wheel.
¥320: bus, Nozomino Terminal → Nagaura Station.
¥1,166: JR, Nagaura → Tamachi.
――――――――――――――――――――――――
¥4,732 total.

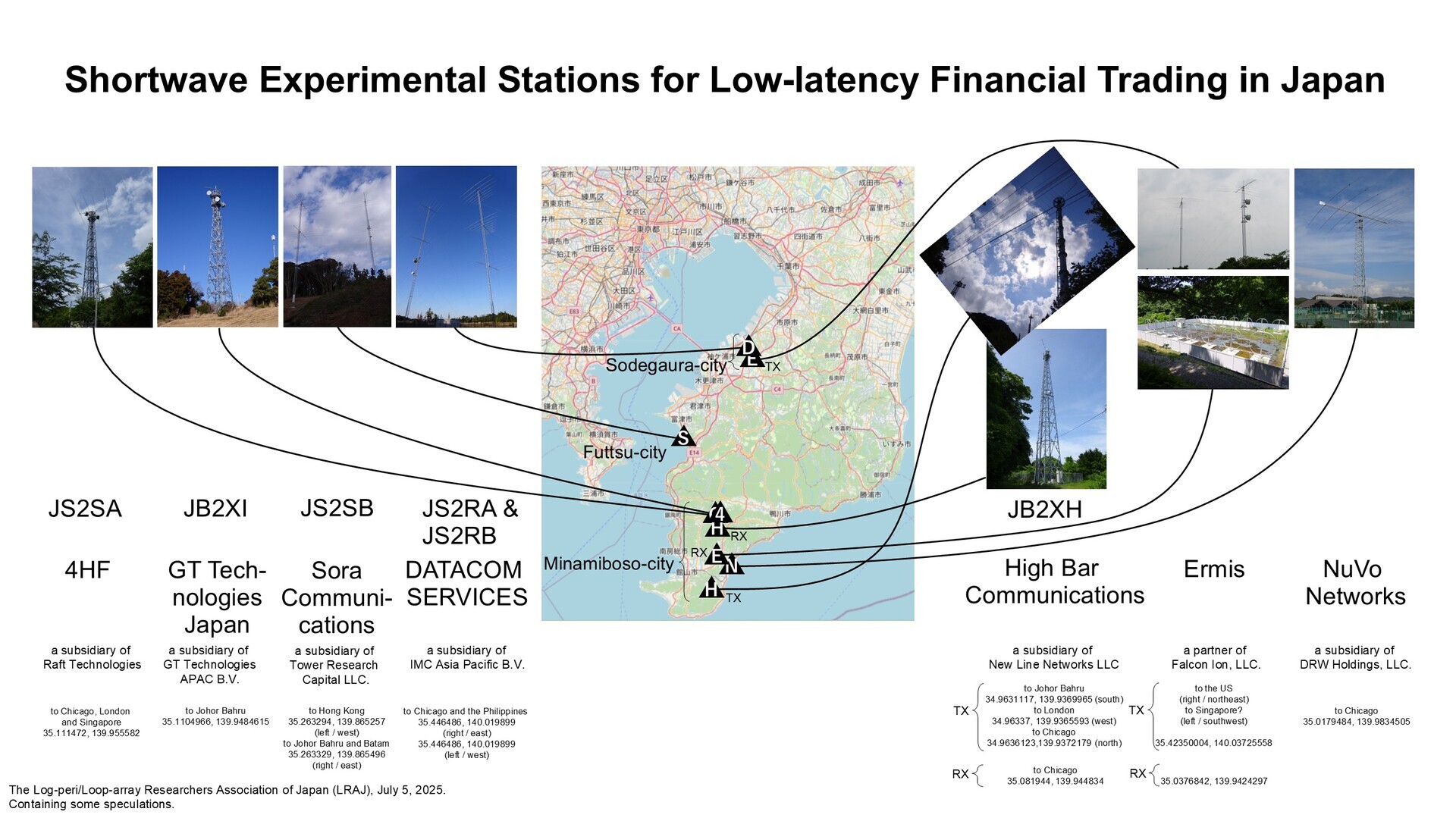

Updated comparison diagram
Click to enlarge, 637 KB.
The counterpart on the W [US] side
Ermis's partner is FalconION.
It has an experimental station, WM2XHW.
FCC FORM 442 - FEDERAL COMMUNICATIONS COMMISSION
APPLICATION FOR NEW OR MODIFIED RADIO STATION UNDER PART 5 OF FCC RULES - EXPERIMENTAL RADIO SERVICE (OTHER THAN BROADCAST)
Looking for a site that appears to point toward JA [Japan]…
(1) 305.00°
East Graham Washington North 47 1 44 West 122 17 58 9905 251st Street PIERCE
https://www.google.com/maps/place/@47.0289583,-122.2995202,48m/data=!3m1!1e3
(2) 305.00°
Mt. Cleary Washington North 46 58 30 West 123 8 21 8800 A Sherman Valley Road GRAYS HARBOR
https://www.google.com/maps/place/@46.9750309,-123.1391041,48m/data=!3m1!1e3
(3) 330.00°
Manhattan Illinois North 41 20 2 West 87 57 29 30445 South Cedar Road WILL
https://www.google.com/maps/place/@41.3341154,-87.9579792,53m/data=!3m1!1e3
Greater Chicago HF Trading Stations
Material compiled by an amateur on the US side.
https://www.udxf.nl/HF-Trading-Stations_03AUGL2023.pdf
